Reader models 读卡器型号

Reader: v2.2
Release: April of 2011
发布：2011年4月

Features 特点:
– new body construction
– 新的壳体结构
– improved connectors strength
– 改进的连接器强度

Adapter legs – screw DIN 965 M2.5�12 �2
Adapter legs – nut DIN 439 M2.5 �2
Adapter to body – nut DIN 934 M2.5 �2
Body – screw DIN 965 M2.5�10 �2
Body – nut DIN 934 M2.5 �2

Reader: v2.1
Release: May of 2008

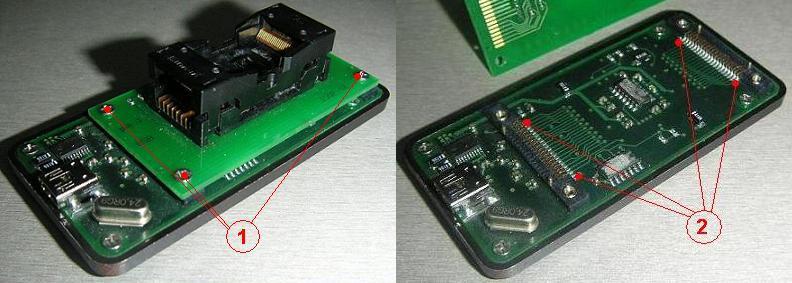

Disadvantages: when overloaded effort is used with tightening of screw during replacement of adapter (1) it is possible to get the deformation with bend of the adapter card and loss of contact in the middle of contact socket (2). Upon repetitive efforts made for mounting the adapter, it is possible deformation of the main board with deflection inside which leads to separation solder legs of chip CY7C68001 (located below on the main board). The appearance of the defect is expressed in multiple glitches in the work of the reader, hanging when reading, a lot of errors in read dumps. This defect can be eliminated with soldering of contacts of legs chips.

Recommendation: Do not use over force to install / remove the adapter, when attaching the adapter to the reader!
建议：不要用力过度安装/拆卸适配器，

Reader: v2.0
Release: May of 2007

There were the radical design changes. Velocity of reading was improved up to 512mb per 40 seconds.

Disadvantages: when overloaded effort is used with tightening of screw during replacement of adapter (1) then separation takes place of solder pin on the main board reader (2). Damage is eliminated with soldering of pins.

Recommendation: Do not use force while changing adapter to secure the reader!
建议：更换适配器时请勿用力固定读卡器！

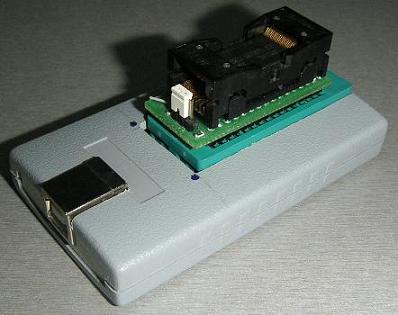

Reader v1.0
Release: September of 2005
