一希捷硬盘型号：ST1000LM035-1RK172 固件版本：SDM1，硬盘通电后能正常识别型号、序列号、固件版本号，但是容量为0 MB ()，使用PC-3000备份希捷硬盘ROM和解锁ROM后备份固件提示002B模块和FC35E028系统文件损坏，希捷硬盘002B模块(FC35E028系统文件)损坏是在希捷硬盘数据恢复工作中经常遇到的故障。
读取模块到配置文件夹
文件夹: E:\!Profiles\SgF3\Rosewood_8C\SDM1-WES07P6X\Data\SABackup\ModDir\将跳过 : 000C, 000E, 000F, 0022, 0023, 002C, 0044, 0045, 0046, 0047, 0048, 0049, 004A, 004F, 0052
模块 0000, Reserved Defect Table (SA defect table)…………………. : Ok
模块 0001, Drive Information File (DIF)…………………………… : Ok
模块 0002, Performance Parameter File (PPF)……………………….. : Ok
模块 0003, Primary Defect File (P-List)…………………………… : Ok
模块 0005, Manufacturing Information File (MIF)……………………. : Ok
模块 0008……………………………………………………… : Ok
模块 000B……………………………………………………… : Ok
模块 000D……………………………………………………… : Ok
模块 0013, Disc Registry File (settings, security, etc)…………….. : Ok
模块 0015, BGMS File (Directed Offline Scan)………………………. : Ok
模块 0016……………………………………………………… : Ok
模块 0017……………………………………………………… : Ok
模块 0019, Log File…………………………………………….. : Ok
模块 001A, Log File…………………………………………….. : Ok
模块 001B, Log File…………………………………………….. : Ok
模块 001C……………………………………………………… : Ok
模块 001D, Physical Overlay File 0……………………………….. : Ok
模块 001E, Physical Overlay File 1……………………………….. : Ok
模块 0020, Physical Overlay File 3……………………………….. : Ok
模块 0021, Physical Overlay File 4……………………………….. : Ok
模块 002A, Saved Mode Pages (HDD settings)………………………… : Ok
模块 002B, R/W Operating Parameters (translator, etc)………………. : Error
错误 : Rq Rd Sys File part ID 2B, Offs 0x0 err!技术状态 0x72, 0x04440000
模块 0033……………………………………………………… : Ok
模块 0034, Packed CONGEN XML definition…………………………… : Ok
模块 003A……………………………………………………… : Ok
模块 003D, Disc firmware container 1……………………………… : Ok
模块 003E, Disc firmware container 2……………………………… : Ok
模块 003F, SED parameters……………………………………….. : Ok
模块 0040, SED parameters……………………………………….. : Ok
模块 0041, SED parameters……………………………………….. : Ok
模块 0042, ST Ovl………………………………………………. : Ok
模块 0043, Defect list report file……………………………….. : Ok
模块 004B……………………………………………………… : Ok
模块 0050, MCMT………………………………………………… : Ok
模块 0058……………………………………………………… : Ok
模块 005C……………………………………………………… : Ok
读取模块完成读取System Files到配置文件夹
文件夹: E:\!Profiles\SgF3\Rosewood_8C\SDM1-WES07P6X\Data\SABackup\SysFiles\
拷贝 : 0 1Sys File FC00C000(0), Reserved Defect Table (SA defect table)……… : Ok
Sys File FC00C000(1), Reserved Defect Table (SA defect table)……… : Ok
Sys File FC00F203(0)………………………………………….. : Ok
Sys File FC00F203(1)………………………………………….. : Ok
Sys File FC01020D(0), Disc firmware container 1………………….. : Ok
Sys File FC01020D(1), Disc firmware container 1………………….. : Ok
Sys File FC01120E(0), Disc firmware container 2………………….. : Ok
Sys File FC01120E(1), Disc firmware container 2………………….. : Ok
Sys File FC012226(0)………………………………………….. : Ok
Sys File FC012226(1)………………………………………….. : Ok
Sys File FC00D330(0), Packed CONGEN XML definition……………….. : Ok
Sys File FC00D330(1), Packed CONGEN XML definition……………….. : Ok
Sys File FC00E331(0)………………………………………….. : Ok
Sys File FC00E331(1)………………………………………….. : Ok
Sys File FC35701B(0), Primary Defect File (P-List)……………….. : Ok
Sys File FC35701B(1), Primary Defect File (P-List)……………….. : Ok
Sys File FC35E028(0), R/W Operating Parameters (translator, etc)…… : Error
错误 : Rd SysF 3:28:0 (0/8000) err = 0x0000000E
Sys File FC35E028(1), R/W Operating Parameters (translator, etc)…… : Error
错误 : Rd SysF 3:28:1 (0/8000) err = 0x0000000E
Sys File FC360035(0), Non Resident G-List……………………….. : Ok
Sys File FC360035(1), Non Resident G-List……………………….. : Ok
Sys File FC361036(0)………………………………………….. : Ok
Sys File FC361036(1)………………………………………….. : Ok
Sys File FC365100(0), Physical Overlay File 0……………………. : Ok
Sys File FC365100(1), Physical Overlay File 0……………………. : Ok
Sys File FC366101(0), Physical Overlay File 1……………………. : Ok
Sys File FC366101(1), Physical Overlay File 1……………………. : Ok
Sys File FC367102(0)………………………………………….. : Ok
Sys File FC367102(1)………………………………………….. : Ok
Sys File FC368103(0), Physical Overlay File 3……………………. : Ok
Sys File FC368103(1), Physical Overlay File 3……………………. : Ok
Sys File FC369104(0), Physical Overlay File 4……………………. : Ok
Sys File FC369104(1), Physical Overlay File 4……………………. : Ok
Sys File FC36A105(0)………………………………………….. : Ok
Sys File FC36A105(1)………………………………………….. : Ok
Sys File FC36B106(0)………………………………………….. : Ok
Sys File FC36B106(1)………………………………………….. : Ok
Sys File FC36C107(0)………………………………………….. : Ok
Sys File FC36C107(1)………………………………………….. : Ok
Sys File FC36D108(0)………………………………………….. : Ok
Sys File FC36D108(1)………………………………………….. : Ok
Sys File FC36E109(0)………………………………………….. : Ok
Sys File FC36E109(1)………………………………………….. : Ok
Sys File FC36F10A(0)………………………………………….. : Ok
Sys File FC36F10A(1)………………………………………….. : Ok
Sys File FC37010B(0)………………………………………….. : Ok
Sys File FC37010B(1)………………………………………….. : Ok
Sys File FC37110C(0)………………………………………….. : Ok
Sys File FC37110C(1)………………………………………….. : Ok
Sys File FC37210D(0)………………………………………….. : Ok
Sys File FC37210D(1)………………………………………….. : Ok
Sys File FC373110(0)………………………………………….. : Ok
Sys File FC373110(1)………………………………………….. : Ok
Sys File FC3961D1(0), SED parameters……………………………. : Ok
Sys File FC3961D1(1), SED parameters……………………………. : Ok
Sys File FC3991D2(0), SED parameters……………………………. : Ok
Sys File FC3991D2(1), SED parameters……………………………. : Ok
Sys File FC38430A(0), Disc Registry File (settings, security, etc)…. : Ok
Sys File FC38430A(1), Disc Registry File (settings, security, etc)…. : Ok
Sys File FC34F346(0)………………………………………….. : Ok
Sys File FC34F346(1)………………………………………….. : Ok
Sys File FC3B1348(0), MCMT…………………………………….. : Ok
Sys File FC3B1348(1), MCMT…………………………………….. : Ok
读取 System Files 完成
服务区信息完成备份
可以从日志中看到只有“模块 002B”和“Sys File FC35E028(0)”损坏其它固件正常；
解决方法
首先备份非常驻缺陷表，【缺陷表】-【编辑非常驻缺陷表G-LIST(G)】-【保存(S)】保存缺陷表表

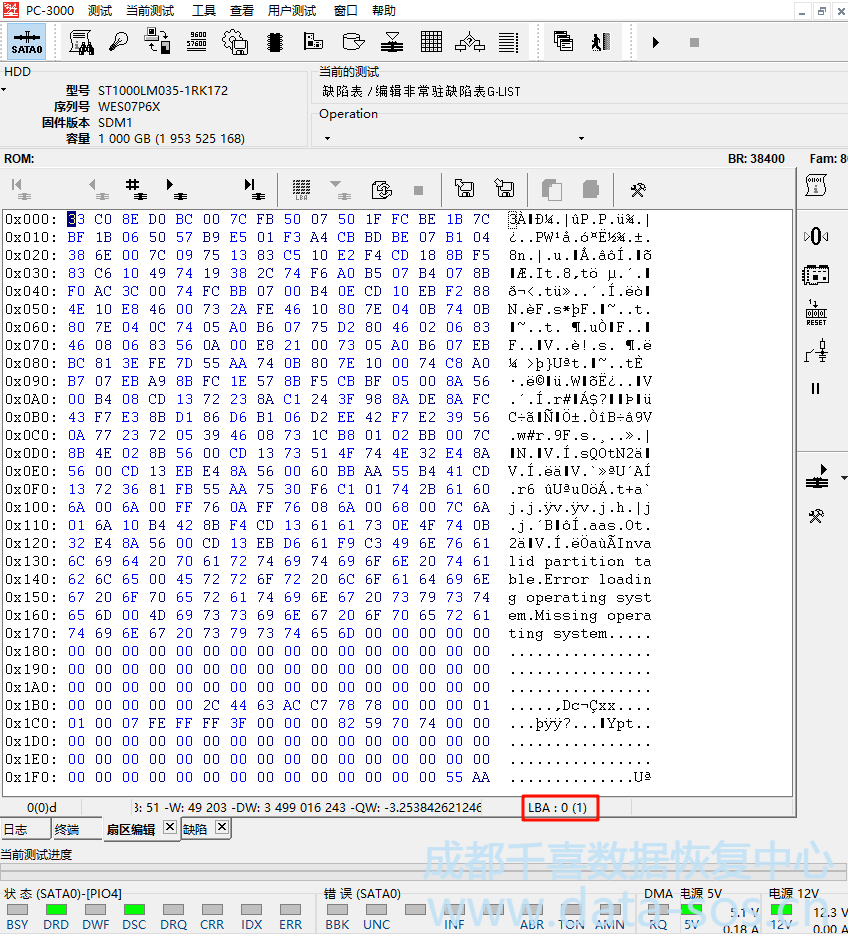

重新断电上电此时能识别硬盘容量，尝试访问硬盘的0扇区和最后一个扇区均正常
