Flash Extractor用户手册-xD/SD适配器

Adapter xD/SD

Flash Extractor用户手册-xD/SD适配器 1

xD part
An xD cards is a standard NAND flash device, but engineered in a different type package.
xD卡是标准的NAND闪存设备,但是以不同类型的包装进行设计。

The adaptor allows us to have access to memory at its lowest level.
适配器允许我们在最低级别访问内存。
SD part
Works through classic/basic SD interface arrangement.
We can read the SD card differently and avoid bad blocks, which usually would hang Microsoft Windows.
我们可以以不同的方式阅读SD卡,避免坏块,通常会挂起微软的Windows。

When you put SD card in regular card reader (like end users use at home or work), below is a list of possible outcomes.
当你把SD卡放在普通读卡器(比如终端用户在家里或工作中使用)时,可以会出现下面的的结果。

1. Microsoft Windows hangs -> 90% of these situations the Soft-Center SD adapter will help.
1. Microsoft Windows挂起  -> SD卡适配器可以解决90%的问题

2. Don’t see disk/storage device in Image Explorer at all -> Only 1% of situations Soft-Center SD adapter helps
2.在资源管理器中看不到磁盘/存储设备 -> SD卡适配器只能解决1%的问题

3. Open disk with Image Explorer, all sectors = CRC Error -> Remove NAND Chip & Attempt Direct NAND Recovery
3.使用Image Explorer打开磁盘,所有扇区= CRC错误 – >移除NAND芯片并尝试直接读取NAND恢复


How to read xD?

1. Setup xD / SD adapter
1.安装xD / SD适配器

2. Insert card
2.插入卡

3. Attach USB connector
3.连接USB接口

4. Read NAND_Reader.exe as usual
4.使用NAND_Reader.exe读取


How to read SD?

1. Setup xD / SD adapter
1.安装xD / SD适配器

2. Install new reader driver version 2 or more
2.安装新的读卡器驱动程序版本2或更高

3. Download Adapter_SD_vXXX.dll
3.下载Adapter_SD_vXXX.dll

4. Image_Explorer \ props \ Copier \ Output = Image File
5. Image_Explorer \ Tool – select Adapter_SD_vXXX.dll


What mean this log?
这个日志是什么意思?

CMD  0  GO_IDLE_STATE

---------- IDLE ----------

ACMD 41  SD_APP_OP_COND

Reset fail

Card is not responding.
卡没有响应。

Card is dead.
卡死了

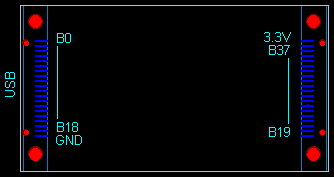

Adapter SD pinout[/color]
适配器SD引脚分配

Look throu top of adapter:
查看适配器顶部:
Flash Extractor用户手册-xD/SD适配器 2

B8   SD_D2
B9   SD_D3
B10  SD_CMD
B11  SD_CLK
B12  SD_D0
B13  SD_D1

Look throu top of card:
查看卡顶部:

Flash Extractor用户手册-xD/SD适配器 3
