用PC-3000 处理希捷硬盘SMP Flags错误

技术文章 2339℃

通电终端出现下列信息,硬盘处于BSY状态,终端并返回LED错误。

 Boot 0x40M
 Spin Up
 Trans.

 Spin UP
(P) SATA Reset
RAW OFF
 PASS
 MCMainPOR: Start:
 User Data Base 0043E470
 Check MCMT Version: Current
MC026: Reconstruction: Completed:
[MCMTWS] Tai/Head 0170 0172
 MCMainPOR: MCTSateFlags 0000002A MCStateFlags 00405141 Tms 000000C2

SP200: MSPMainPOR Start
ProcessRWError -Read- at LBA 0000024 Sense COde=40000087
ProcessRWError -Read- at LBA 0000024 Sense COde=40000087
ProcessRWError -Read- at LBA 0000024 Sense COde=40000087
ProcessRWError -Write- at LBA 0000024 Sense COde=40000087
ProcessRWError -Write- at LBA 0000024 Sense COde=40000087
ProcessRWError -Write- at LBA 0000024 Sense COde=40000087
ProcessRWError -Write- at LBA 0000024 Sense COde=40000087
 MSP ManinPOR: 00003000 Tms 000000C2 00000219 000002EA
 MSP MainPOR Complete

6Gb Max Speed lowered to 3Gb for intel bug
Send Status: COMRESET seen
ProcessRWError -Read- at LBA 0000024 Sense COde=40000087
ProcessRWError -Read- at LBA 0000024 Sense COde=40000087
InitiateMarkPendingReallocateReauest for disc_lba: 00000145DF!

 seg Read Error at LBA 00000A2EF8
skip Seqment - 0170
LED 00000BD FAddr:0000988E
Rst 0x40M
LED 00000BD FAddr:0000988E
LED 00000BD FAddr:0000988E



解决方法:

1.尝试按Ctrl+Z进入F3 T级,如若不能尝试能过希捷硬盘短接点进入T级

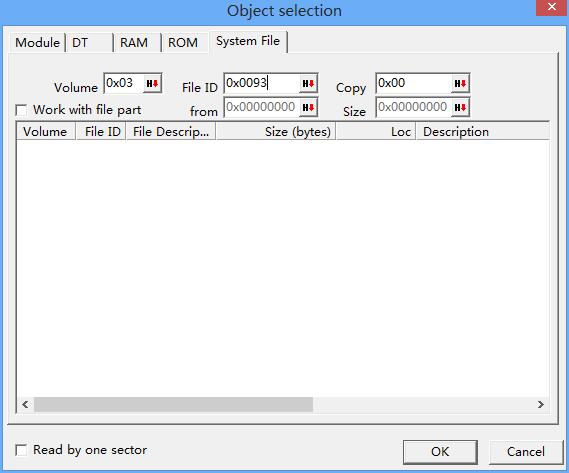

2.点击Tools -> Utility extensions -> Service information objects 读取系统文件Volume: 0x03 File ID: 0x0093 Copy: 0x00

用PC-3000 处理希捷硬盘SMP Flags错误 1

3.点击“Edit Saved Mode Pages module (SMP)” 菜单

用PC-3000 处理希捷硬盘SMP Flags错误 2

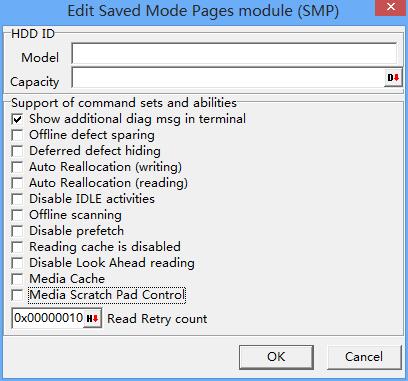

4.关闭如图的选项,点击“OK”写入硬盘;

用PC-3000 处理希捷硬盘SMP Flags错误 3
